Solar Controller

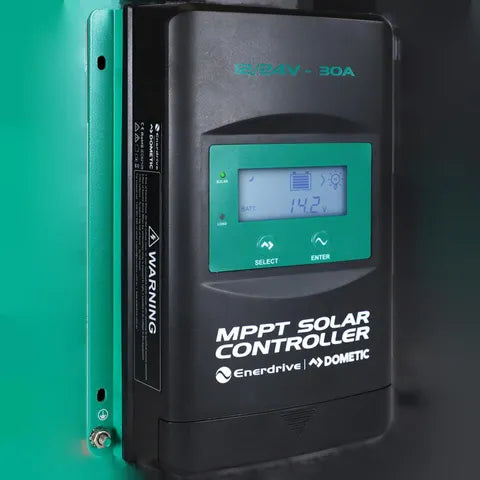

Enerdrive 30A MPPT Solar Controller — 12/24V with Display
30A MPPT solar controller — handles up to 900W of solar on a 24V system
Why this product?
As solar systems grow beyond a single panel, a 20A controller becomes a bottleneck. The 30A handles larger arrays while still delivering Enerdrive's MPPT efficiency advantage.
- 30A output — handles larger solar arrays
- Up to 30% more energy than PWM
- 98.6% maximum efficiency
- Three-stage charging for longer battery life
- Comprehensive protection built-in
- LCD display with adjustable backlight
- Suits 12V and 24V systems
About this product
The Enerdrive MPPT (Maximum Power Point Tracking — a smart charging method that extracts up to 30% more power from solar panels than older PWM (Pulse Width Modulation — an older, simpler solar charging method) controllers) Solar Controllers adopt the advanced MPPT control algorithm, it can minimize the maximum power point loss rate and loss time, quickly track the maximum power point (MPP) of the PV array and obtain the maximum energy from solar array under any conditions; and it can increase the ratio of energy utilization in the solar system by 20%-30% compared with PWM charging method.
The Enerdrive MPPT Solar Controllers has self-adaptive three-stage charging mode based on digital control circuit, which can effectively prolong the lifespan of batteries and significantly improve the system performance. It also has comprehensive electronic protection for overcharge, over discharge, PV & battery reverse polarity. This controller can be widely used for RV, Marine, remote off grid monitoring and many other applications.
IP33 Ingress protection and isolated RS485 design further improves the controller’s reliability and meet the different application requirements.
Why this beats the alternatives
98.6% maximum efficiency and support for up to 900W at 24V makes this the right controller for mid-size systems. Same three-stage charging and comprehensive protection as the 20A, with more headroom.
Who it's for
RV and marine users with 2-3 panels or larger battery banks who need a controller that won't limit their system's potential.
